Generating the Earth from Space Image

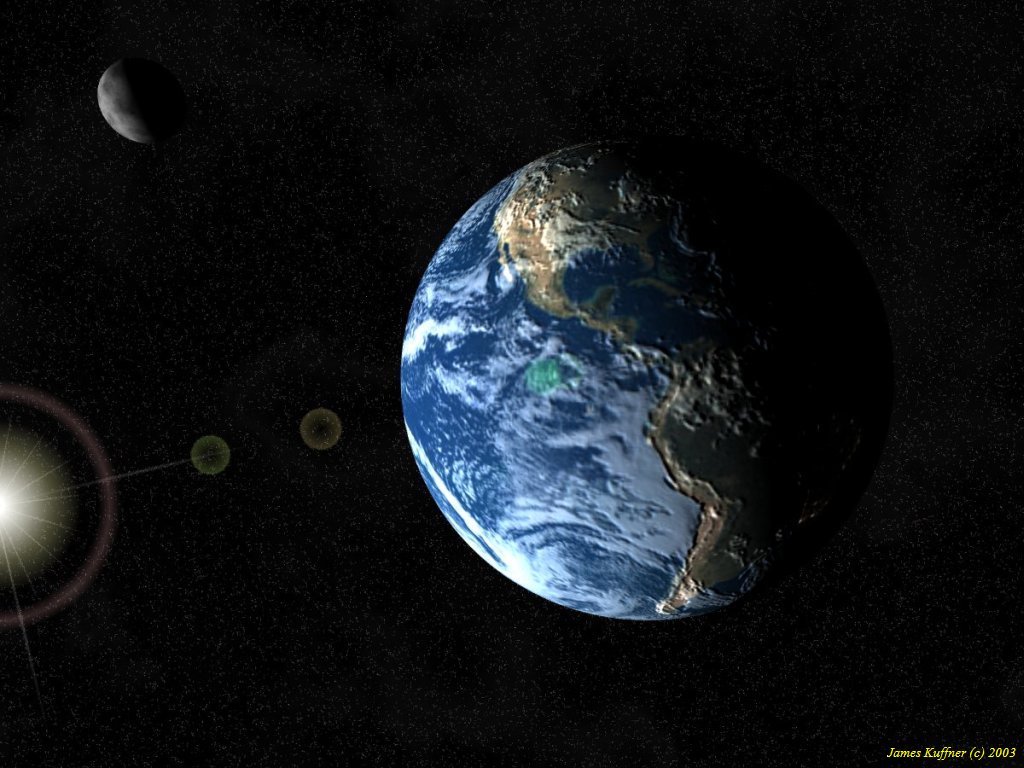

Earth from Space Final Image
Rendered with POVRay 3.5

The Inspiration

I have always loved Astronomy and Space Travel, and I wanted to create an image of our home planet. NASA has created some composite images of Earth next to the moon, and I liked that kind of view.

In reality, the moon is quite distant from the Earth, which makes it difficult to choose a viewpoint without one of them looking too small. So I decided to create something that was more "surreal" than "realistic" in terms of appearance and relative distances.

NASA composite image

How was it created?

Rendering the Earth requires good texture maps of the continents. I searched online for some suitable images, and found some excellent textures as part of the Celestia 3D Space Simulator (highly recommended!). I used the textures shown below to create the planet Earth:

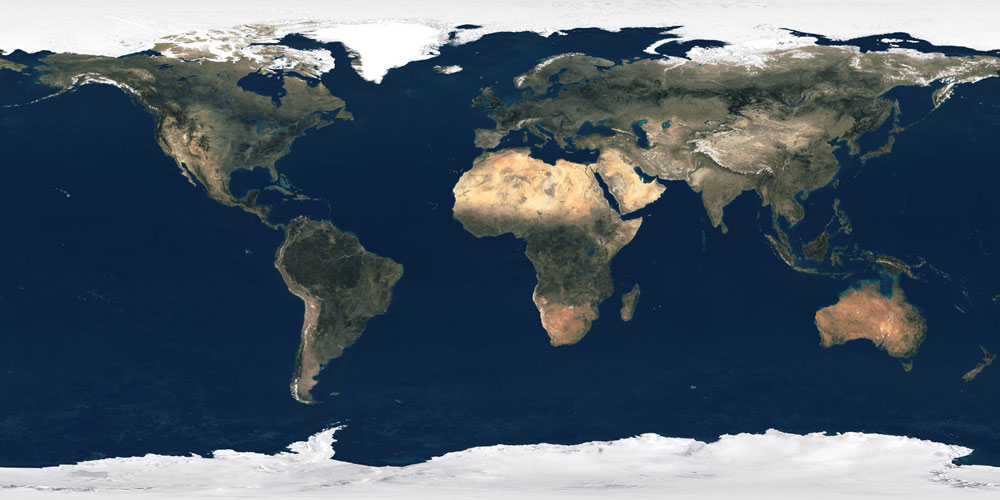

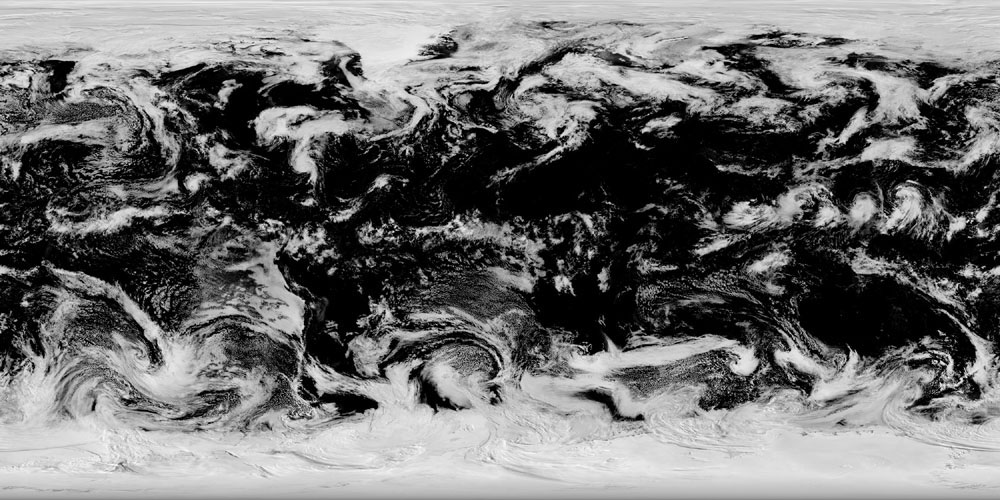

1) Earth Land Texture Map (click for larger image)	1) Earth Cloud Cover Texture Map (click for larger image)

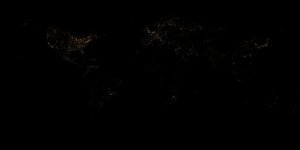

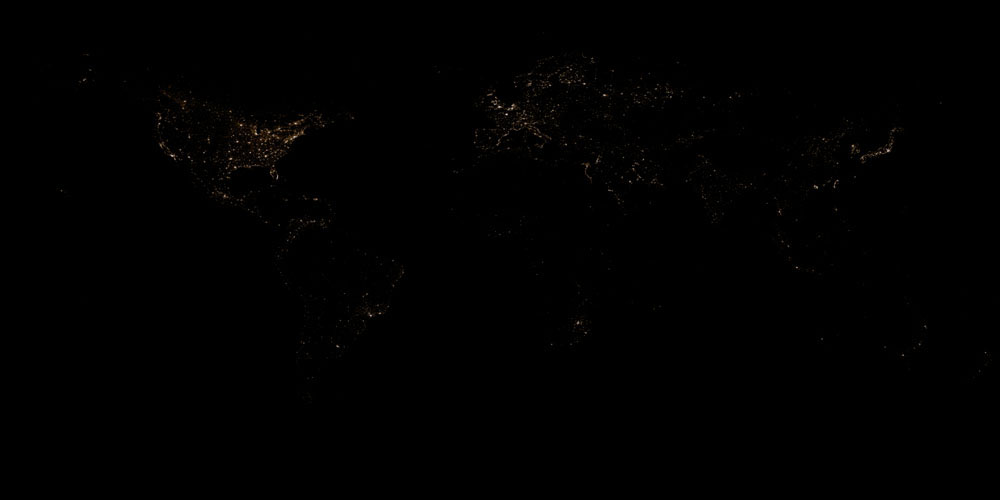

1) Earth City Lights Texture Map (click for larger image)

I created a 3-layer texture map with the base land and cloud cover textures, and the cloud cover image also used as a bump map. The height of the bump map is exaggerated greatly, but seemed to make the planet look better.

The city lights image provided subtle detail for the unlit side of the planet, which is defined below as a bit of a hack to display without any visible artifacts at the daylight boundary on the planet surface.

The Earth

Here is the planet Earth definition:


////////////////////////////////////////////////////////////////
// "earth.inc"
// Earth textures and display macros
// James Kuffner, Jr.
// July 2003

//
// Earth model
//

#declare PEarthBase =
pigment {
  image_map {
    jpeg "earth_land.jpg" // the file to read (iff/tga/gif/png/jpeg/tiff/sys)
    map_type 1        // 0=planar, 1=spherical, 2=cylindrical, 5=torus
    interpolate 2     // 0=none, 1=linear, 2=bilinear, 4=normalized distance
  } // image_map
}

#declare PEarthClouds =
pigment {
  image_map {
    jpeg "earth_clouds.jpg" // the file to read (iff/tga/gif/png/jpeg/tiff/sys)
    map_type 1        // 0=planar, 1=spherical, 2=cylindrical, 5=torus
    interpolate 2     // 0=none, 1=linear, 2=bilinear, 4=normalized distance
    //transmit all 0.5      // N=all or color index # (0...N), V= value (0.0...1.0)
  } // image_map
}

#declare PEarthCityLights =
pigment {
  image_map {
    jpeg "earth_citylights.jpg" // the file to read (iff/tga/gif/png/jpeg/tiff/sys)
    map_type 1        // 0=planar, 1=spherical, 2=cylindrical, 5=torus
    interpolate 2     // 0=none, 1=linear, 2=bilinear, 4=normalized distance
    //transmit all 0.5      // N=all or color index # (0...N), V= value (0.0...1.0)
  } // image_map
}


#declare NEarthBump =
normal {
  bump_map { // uses image color or index as bumpiness
    jpeg "earth_clouds.jpg" // the file to read (iff/tga/gif/png/jpeg/tiff/sys)
    map_type 1        // 0=planar, 1=spherical, 2=cylindrical, 5=torus
    interpolate 2     // 0=none, 1=linear, 2=bilinear, 4=normalized distance
    bump_size 0.2     // 0...3
  } // bump_map
}


#declare TEarth =
texture {
  pigment {
    average
    pigment_map {
      [ 2.0 PEarthBase ]
      [ 1.0 PEarthClouds ]
    }
  }
  finish {ambient 0.001 diffuse 3.0 }
  normal { NEarthBump }
}

#declare TEarthCityLights =
texture {
  pigment { PEarthCityLights }
  finish { ambient 0.9 diffuse 0 }
}

#declare Earth =
union {
  sphere { 0, 1
    texture { TEarth }
  }
  // overlay a thin city lights texture layer on the
  // unlit half of the sphere
  difference {
    sphere { 0, 1.00001
      texture { TEarthCityLights }
    }
    box {
      <2, 2, 2>, <0, -2, -2>
      rotate y*-43
    }
  }
}

The Moon

The moon was created using a sphere with layered textures. The base color is a color map with the wrinkle pattern, blended with a granite pattern to simulate the appearance of impact craters.

//
// Moon model
//

#declare PMoonBaseColor =
pigment {
  wrinkles   turbulence 0.2   scale 0.5
  color_map { [0 rgb 1] [1 rgb 0] }
}

#declare PMoonCraters =
pigment {
  granite    scale 0.2
  color_map{
    [ 0 rgb 1 ]
    [ 1 rgb 0 ]
  }
}

#declare TMoon=
texture{
  pigment {
    average
    pigment_map{
      [0.85 PMoonBaseColor]
      [0.15 PMoonCraters]
    }
  }
  finish {ambient 0.001 diffuse 0.95 specular 0}
}

#declare Moon =
sphere { 0, 1
  texture {TMoon }
}

The Stars

To define the background stars, I created a textured hollow sphere based on examples from some of the POV predefined skies. A blended texture layer of turbulent pigment provides some non-uniformity as interstellar space dust and gas.


// define a starry sky
//
#include "stars.inc"

#declare T_space_gas =
texture{
 pigment {
    bozo
    turbulence 0.8   octaves 10
    omega 0.5        lambda 2.5
    color_map {
        [0.0, 0.4 color rgbt<0, 0, 0, 1>        color rgbt<.3, .3, .3, 0.8> ]
        [0.4, 0.6 color rgbt<.3, .3, .3, 0.8>   color rgbt<0.4, 0.3, 0.3, 1> ]
        [0.6, 1.0 color rgbt<0.4, 0.3, 0.3, 1>  color rgbt<0.4, 0.3, 0.3, 0.9> ]
    }
 }
 finish { ambient 1 diffuse 0 }
}

// create a large, hollow sphere
sphere { 0, 10000
  texture {
    Starfield1
    scale 40
    finish { ambient 2 diffuse 0 }
  }
  texture {
    T_space_gas
    scale 2000
  }
  hollow
}

Final Touches

Nathan Kopp's lens flare macro provided a finishing touch. I did some initial experimenting and then settled on the final result on the right below:

1) Original Lens Flare Test
(click for larger image)

1) Final Image
(click for larger image)
